4. Parenting entities

Every now and then it makes sense to parent network entities to each other, for instance when creating vehicles or an elevator. In this sample scene we'll see what are the implications of that, and how coherence uses this to optimize network traffic.

Controls

• WASD or Left stick: Move character

• Hold Shift or Shoulder button left: Run

• Spacebar or Joypad button down: Jump

Topics covered

Moving platforms | Local positions | Parenting at runtime | Optimization

In this scene

This wintery setting contains 2 moving platforms running along splines. Players can jump on them and they will receive the platform's movement and rotation, while still being able to move relative to the platform itself.

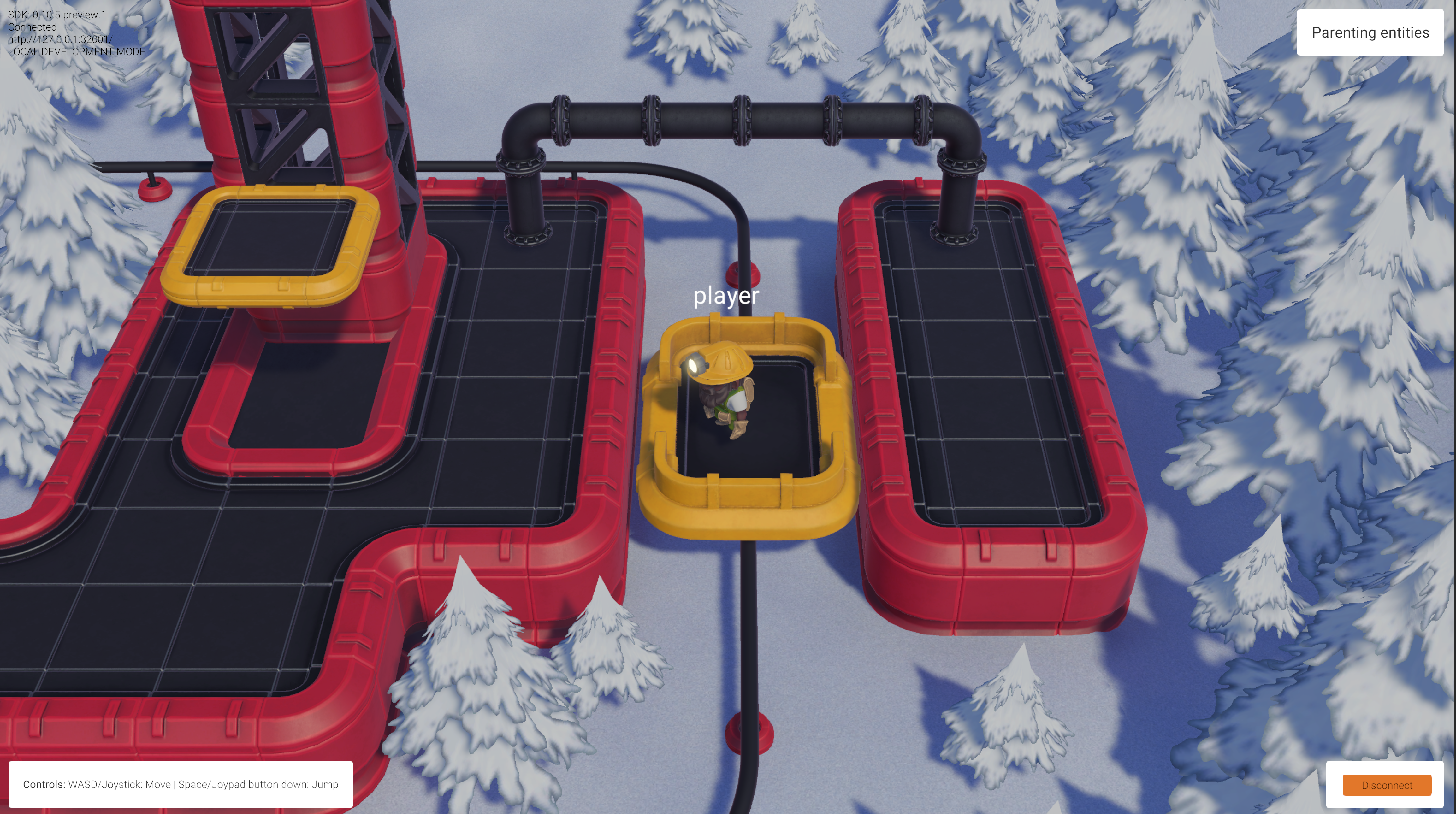

A player is riding a moving platform, and its Prefab gets parented to it.

One important note: re-parenting has to happen at runtime. Currently, coherence doesn't support the authoring of Prefabs with more than one CoherenceSync nested inside each other, but this will come in a future version.

How it's set up

This scene doesn't require anything special in terms of network setup to work.

Direct parenting of network entities in coherence happens exactly like usual, with a simple transform.SetParent(). The player's Move script is set to recognize the moving platforms when it lands on them, and it just parents itself to it.

As for the platforms, they are just moving themselves as kinematic rigid bodies, following the path of their spline (see the FloatingPlatform script). Their position and rotation is synced on the network, and the first Client to connect assumes authority over them.

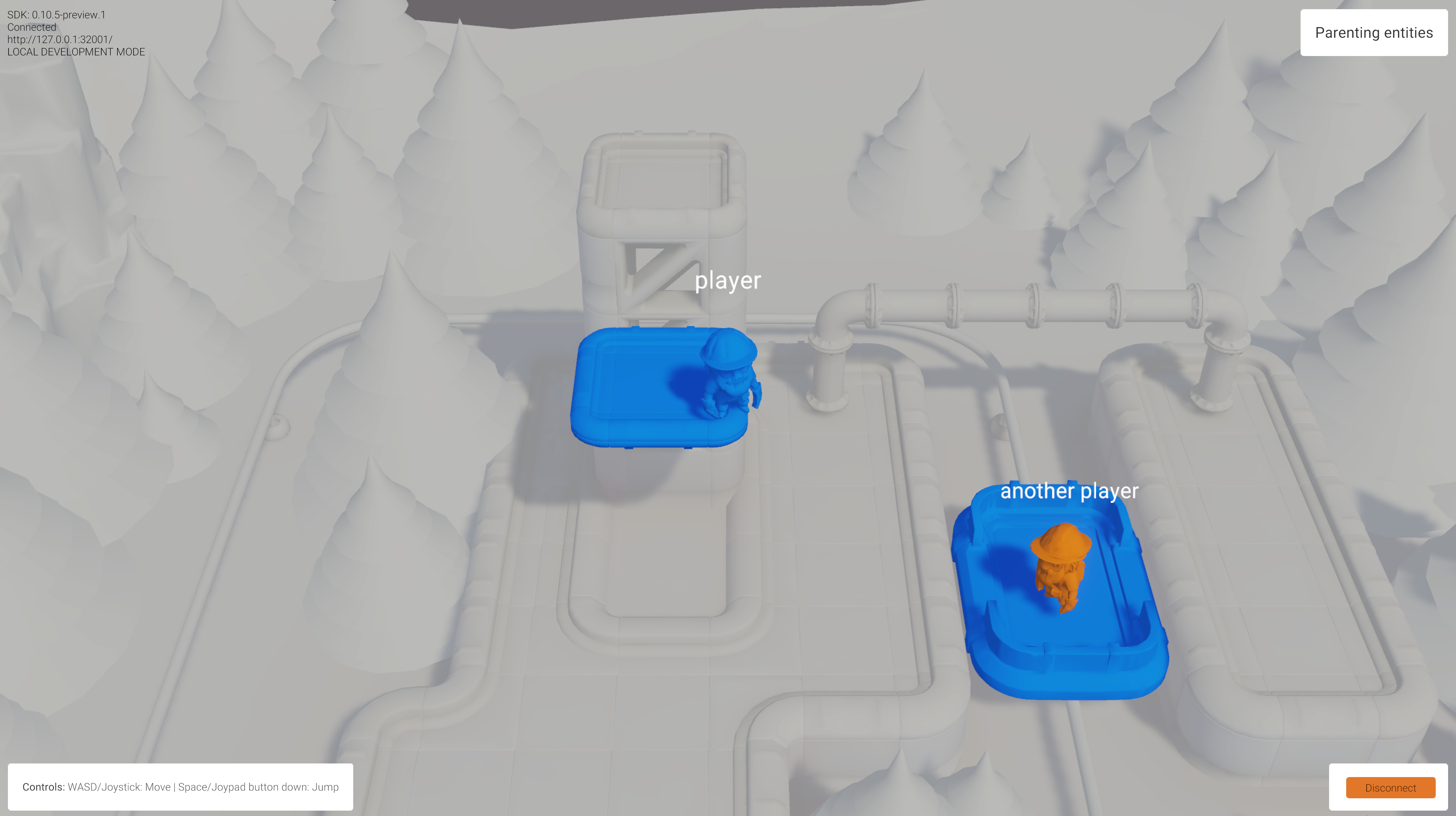

As usual, hitting Tab shows authority. The Client named "player" is currently simulating the platforms.

Effects of parenting entities

Once directly parented, coherence automatically switches to sync the child's position and rotation as local, rather than in world space. This means that when child entities don't move within their parent, no data about them is being sent across the network.

Imagine for instance a situation where 3 players are riding one of the platforms and not moving, only the coordinates of the platform are being synced every frame.

Limitations of simple parenting

You might have noticed we always mentioned "direct" parenting. One limitation of this simple setup is that the parented network entity has to be a first-level child of the parent one. This doesn't exclude that the parent can have other child GameObjects (and other networked entities!), but networked entities have to be a direct child.

A hierarchy could look like this:

• Platform

  • Player

    • Character graphics

    • Bones

    • ...

  • Platform's graphics

  • ...

(In bold is the root of each Prefab, which has a CoherenceSync component)

You can even parent multiple network entities to each other. For example, a networked character holding a networked crate, riding a networked elevator, on a networked spaceship. In that case:

• Spaceship

  • Elevator1

    • Elevator graphics

  • Elevator2

    • Player

      • Crate

      • Character graphics

    • Elevator graphics

  • Spaceship graphics

  • ...

For cases like these, coherence takes care of them automatically. More complex hierarchies require a different handling, and we cover them in another lesson.
