Determinism, Prediction and Rollback
Overview
coherence Input Queues are backed by a rolling buffer of inputs transmitted between the Clients. This buffer can be used to build a fully deterministic simulation with a client side-prediction, rollback, and input delay. This game networking model is often called the GGPO (Good Game Peace Out).
Input delay allows for a smooth, synchronized netplay with almost no negative effect on the user experience. The way it works is input is scheduled to be processed X frames in the future. Consider a fighting game scenario with two players. At frame 10 Player A presses a kick button that is scheduled to be executed at frame 13. This input is immediately sent to Player B. With a decent internet connection, there's a very good chance that Player B will receive that input even before his frame 13. Thanks to this, the simulation is always in sync and can progress steadily.
Prediction is used to run the simulation forward even in the absence of inputs from other players. Consider the scenario from the previous paragraph - what if Player B doesn't receive the input on time? The answer is very simple - we just assume that the input state hasn't changed and progress with the simulation. As it turns out this assumption is valid most of the time.
Rollback is used to correct the simulation when our predictions turn out wrong. The game keeps historical states of the game for past frames. When an input is received for a past simulation frame the system checks whether it matches the input prediction made at that frame. If it does we don't have to do anything (the simulation is correct up to that point). If it doesn't match, however, we need to restore the simulation state to the last known valid state (last frame which was processed with non-predicted inputs). After restoring the state we re-simulate all frames up to the current one, using the fresh inputs.
GGPO is not recommended for FPS-style games. The correct rollback networking solution for those is planned to be added in the future.
Determinism
In a deterministic simulation, given the same set of inputs and a state we are guaranteed to receive the same output. In other words, the simulation is always predictable. Deterministic simulation is a key part of the GGPO model, as well as a lockstep model because it lets us run exactly the same simulation on multiple Clients without a need for synchronizing big and complex states.
Implementing a deterministic simulation is a non-trivial task. Even the smallest divergence in simulation can lead to a completely different game outcome. This is usually called a desync. Here's a list of common determinism pitfalls that have to be avoided:
Using
Update
to run the simulation (every player might run at a different frame rate)Using coroutines, asynchronous code, or system time in a way that affects the simulation (anything time-sensitive is almost guaranteed to be non-deterministic)
Using Unity physics (it is non-deterministic)
Using random numbers generator without prior seed synchronization
Non-symmetrical processing (e.g. processing players by their spawn order which might be different for everyone)
Relying on floating point numbers across different platforms, compilations or processor types
Quickstart guide
We'll create a simple, deterministic simulation using provided utility components.
This is the recommended way of using Input Queues since it greatly reduces the implementation complexity and should be sufficient for most projects.
If you'd prefer to have full control over the input code feel free to use theCoherenceInput
and InputBuffer
directly.
Our simulation will synchronize the movement of multiple Clients, using the rollback and prediction in order to cover for the latency.
Player implementation
Start by creating a Player
component and a Prefab for it. We'll use the client connection system to make our Player
represent a session participant and automatically spawn the selected Prefab for each player that connects to the Server. The Player
will also be responsible for handling inputs using the CoherenceInput
component.
Create a Prefab from cube, sphere, or capsule, so it will be visible on the scene. That way it will be easier to verify visually if the simulation works, later.
When building an input-based simulation it is important to use the Client connection system, that is not a subject to the LiveQuery. Objects that might disappear or change based on the client-to-client distance are likely to cause simulation divergence leading to a desync.
Our Player
code looks as follows:
GetMovement
and SetMovement
will be called by our "central" simulation code. Now that we have our Player
class written, let's prepare a Prefab for it.
Create a GameObject and attach the Player
script to it, using the CoherenceSync inspector create a Prefab.

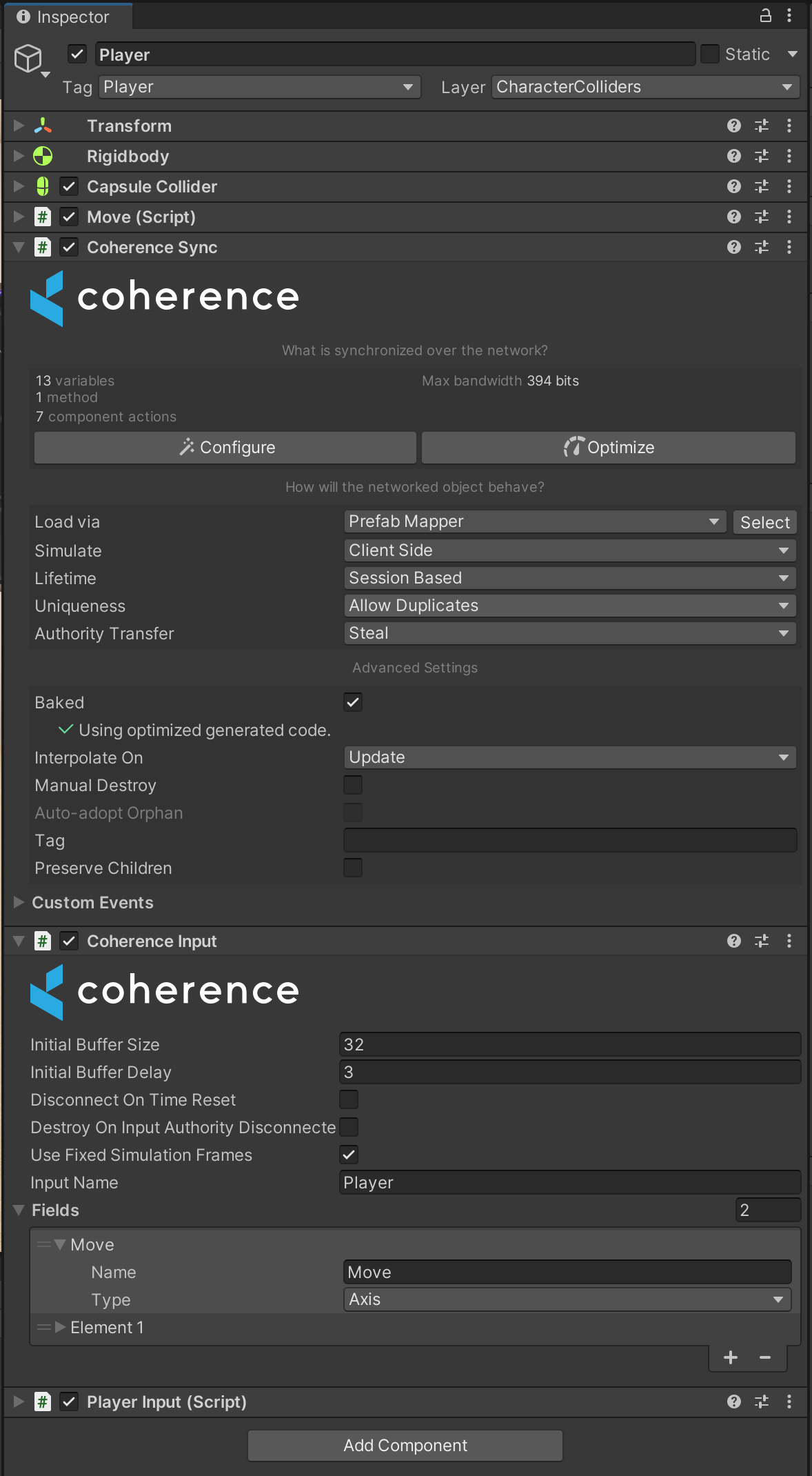

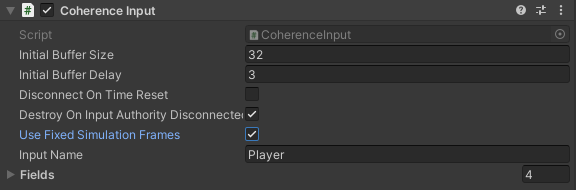

The inspector view for our Prefab should look as follows:
A couple of things to note:
A
Move
2D axis has been added to the CoherenceInput which will let us sync the movement input state.Unlike in the Server authoritative setup our simulation uses client-to-client communication, meaning each Client is responsible for its Entity and sending inputs to other Clients. To ensure this behavior set the Simulate property to Client Side.
In a deterministic simulation, it is our code that is responsible for producing deterministic output on all Clients. This means that automatic syncing is no longer desirable. To turn auto-syncing off, click on the button with the coherence symbol next to bindings in the Configuration window and select Always Client Predict. This will stop the automatic syncing, and allow us to predict this binding and write to it.
In order for inputs to be processed in a deterministic way, we need to use fixed simulation frames. Check the CoherenceInput > Use Fixed Simulation Frames checkbox.
Make sure to use baked mode (CoherenceInput > Use Baked Script) - inputs do not work in reflection mode.

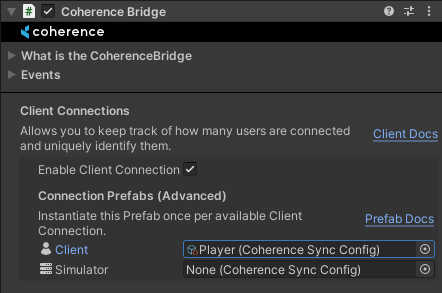

Since our player is intended to be a Client Connection Prefab, we must set it as such in the CoherenceBridge and Enable Client Connections:
State implementation
Before we move on to the simulation, we need to define our simulation state which is a key part of the rollback system. The simulation state should contain all the information required to "rewind" the simulation in time. For example, in a fighting game that would be the position of all players, their health, and perhaps a combo gauge level. In a shooting game, this could be player positions, their health, ammo, and map objective progression.
In the example we're building, player position is the only state. We need to store it for every player:
The state above assumes the same number and order of players in the simulation. The order is guaranteed by the CoherenceInputSimulation
, however, handling a variable number of Clients is up to the developer.
Simulation implementation
Simulation code is where all the logic should happen, including applying inputs and moving our Players
:
We have identified a misprediction bug in coherence 1.1.3 and earlier versions that causes a failed rollback right after a new Client joins a session, throwing relevant error messages. However if the Client manages to connect, this won't affect the rest of the simulation. The fix should ship in the next release.
SetInputs
is called by the system when it's time for our localPlayer
to update its input state using theCoherenceInput
.Simulate
is called when it's time to simulate a given frame. It is also called during frame re-simulation after misprediction - don't worry though, the complex part is handled by theCoherenceInputSimulation
internals - all you need to do in this method is apply inputs from theCoherenceInput
to run the simulation.Rollback
is where we need to set the simulation state back to how it was at a given frame. The state is already provided in thestate
parameter, we just need to apply it.CreateState
is where we create a snapshot of our simulation so it can be used later in case of rollback.OnClientJoined
andOnClientLeft
are optional callbacks. We use them here to start and stop the simulation depending on the number of Clients.
The SimulationEnabled
is set to "false" by default. That's because in a real-world scenario the simulation should start only after all Clients have agreed for it to start, on a specific frame chosen, for example, by the host.
Starting the simulation on a different frame for each Client is likely to cause a desync (as well as joining in the middle of the session, without prior simulation state synchronization). Simulation start synchronization is however out of the scope of this guide so in our simplified example we just assume that Clients don't start moving immediately after joining.

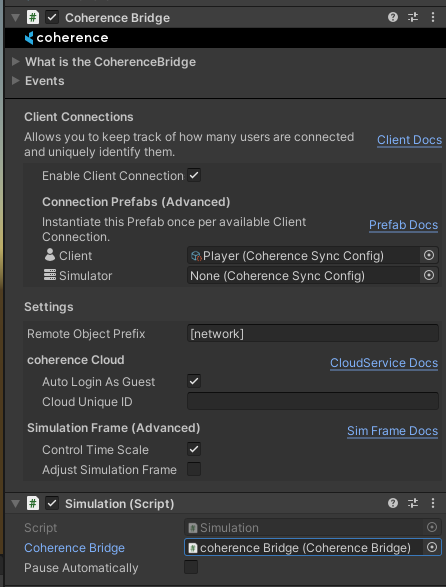

As a final step, attach the Simulation
script to the Bridge object on scene and link the Bridge back to the Simulation
:
That's it! Once you build a client executable you can verify that the simulation works by connecting two Clients to the Replication Server. Move one of the Clients using arrow keys while observing the movement being synced on the other one.
Input in fixed network update
Due to the FixedNetworkUpdate
running at different (usually lower) rate than Unity's Update
loop, polling inputs using the functions like Input.GetKeyDown
is susceptible to a input loss, i.e. keys that were pressed during the Update
loop might not show up as pressed in the FixedNetworkUpdate
.
To illustrate why this happens consider the following scenario: given that Update
is running five times for each network FixedNetworkUpdate
, if we polled inputs from the FixedNetworkUpdate
there's a chance that an input was fully processed within the five Update
s in-between FixedNetworkUpdate
s, i.e. a key was "down" on the first Update
, "pressed" on the second, and "up" on a third one.
To prevent this issue from occurring you can use the FixedUpdateInput
class:
The FixedUpdateInput
works by sampling inputs at Update
and prolonging their lifetime to the network FixedNetworkUpdate
so they can be processed correctly there. For our last example that would mean "down" & "pressed" registered in the first FixedNetworkUpdate
after the initial five updates, followed by an "up" state in the subsequent FixedNetworkUpdate
.
The example above works only with the legacy input system (UnityEngine.Input
).
Pause handling
There's a limit to how many frames can be predicted by the Clients. This limit is controlled by the CoherenceInput.InputBufferSize
. When Clients try to predict too many frames into the future (more frames than the size of the buffer) the simulation will issue a pause. This pause affects only the local Client. As soon as the Client receives enough inputs to run another frame the simulation will resume.
To get notified about the pause use the OnPauseChange(bool isPaused)
method from the CoherenceInputSimulation
:
This can be used for example to display a pause screen that informs the player about a bad internet connection.
To recover from the time gap created by the pause the Client will automatically speed up the simulation. The time scale change is gradual and in the case of a small frame gap, can be unnoticeable. If a manual control over the timescale is desired set the CoherenceBridge.controlTimeScale
flag to "false".
Debugging
The CoherenceInputSimulation
has a built-in debugging utility that collects various information about the input simulation on each frame. This data can prove extremely helpful in finding a simulation desync point.
The CoherenceInputDebugger
can be used outside the CoherenceInputSimulation
. It does however require the CoherenceInputManager
which can be retrieved through the CoherenceBridge.InputManager
property.
Setup

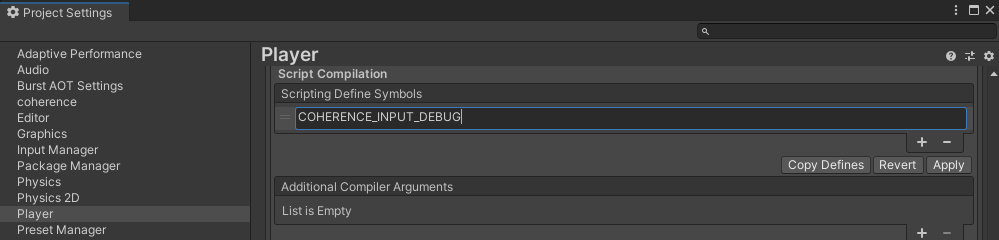

Since debugging might induce a non-negligible overhead it is turned off by default. To turn it on, add a COHERENCE_INPUT_DEBUG
scripting define:
From that point, all the debugging information will be gathered. The debug data is dumped to a JSON file as soon as the Client disconnects. The file can be located under a root directory of the executable (in case of Unity Editor the project root directory) under the following name: inputDbg_<ClientId>.json
, where <ClientId>
is the CoherenceClientConnection.ClientId
of the local client.
Data handling behavior can be overridden by setting the CoherenceInputDebugger.OnDump
delegate, where the string parameter is a JSON dump of the data.
The debugger is available as a property in the simulation base class: CoherenceInputSimulation.Debugger
. Most of the debugging data is recorded automatically, however, the user is free to append any arbitrary information to a frame debug data, as long as it is JSON serializable. This is done by using the CoherenceInputDebugger.AddEvent
method:
Since the simulation can span an indefinite amount of frames it might be wise to limit the number of debug frames kept by the debugging tool (it's unlimited by default). To do this use the CoherenceInputDebugger.FramesToKeep
property. For example, setting it to 1000 will instruct the debugger to keep only the latest 1000 frames worth of debugging information in the memory.
Serialization
Since the debugging tool uses JSON as a serialization format, any data that is part of the debug dump must be JSON-serializable. An example of this is the simulation state. The simulation state from the quickstart example is not JSON serializable by default, due to Unity's Vector3 that doesn't serialize well out of the box. To fix this we need to give JSON serializer a hint:
With the JsonProperty
attribute, we can control how a given field/property/class will be serialized. In this case, we've instructed the JSON serializer to use the custom UnityVector3Converter
for serializing the vectors.
You can write your own JSON converters using the example found here. For information on the Newtonsoft JSON library that we use for serialization check here.
Comparing debug data
To find a problem in the simulation, we can compare the debug dumps from multiple clients. The easiest way to find a divergence point is to search for a frame where the hash differs for one or more of the clients. From there, one can inspect the inputs and simulation states from previous frames to find the source of the problem.
Here's the debug data dump example for one frame:
Explanation of the fields:
Frame
- frame of this debug dataAckFrame
- the common acknowledged frame, i.e. the lowest frame for which inputs from all clients have been received and are known to be valid (not mispredicted)ReceiveFrame
- the common received frame, i.e. the lowest frame for which inputs from all clients have been receivedAckedAt
- a frame at which this frame has been acknowledged, i.e. set as known to be valid (not mispredicted)MispredictionFrame
- a frame that is known to be mispredicted, or-1
if there's no mispredictionHash
- hash of the simulation state. Available only if the simulation state implements theIHashable
interfaceInitial state
- the original simulation state at this frame, i.e. a one before rollback and resimulationInitial inputs
- original inputs at this frame, i.e. ones that were used for the first simulation of this frameUpdated state
- the state of the simulation after rollback and resimulation. Available only in case of rollback and resimulationUpdated inputs
- inputs after being corrected (post misprediction). Available only in case of rollback and resimulationInput buffer states
- dump of the input buffer states for each client. For details on the fields see theInputBuffer
code documentationEvents
- all debug events registered in this frame
Configuration

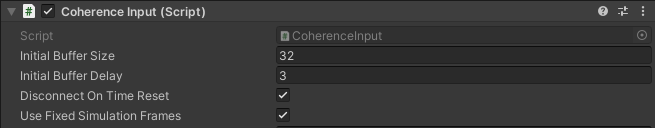

Input buffer
There are two main variables which affect the behaviour of the InputBuffer
:
Initial buffer size - the size of the buffer determines how far into the future the input system is allowed to predict. The bigger the size, the more frames can be predicted without running into a pause. Note that the further we predict, the more unexpected the rollback can be for the player. The
InitialBufferSize
value can be set directly in code however it must be done before theAwake
of the baked component, which might require a script execution order configuration.Initial buffer delay - dictates how many frames must pass before applying an input. In other words, it defines how "laggy" the input is. The higher the value, the less likely Clients are going to run into prediction (because a "future" input is sent to other Clients), but the more unresponsive the game might feel. This value can be changed freely at runtime, even during a simulation (it is however not recommended due to inconsistent input feeling).
The other two options are:
Disconnect on time reset - if set to "true" the input system will automatically issue a disconnect on an attempt to resync time with the Server. This happens when the Client's connection was so unstable that frame-wise it drifted too far away from the Server. In order to recover from that situation, the Client performs an immediate "jump" to what it thinks is the actual server frame. There's no easy way to recover from such a "jump" in the deterministic simulation code, so the advised action is to simply disconnect.
Use fixed simulation frames - if set to "true" the input system will use the
IClient.ClientFixedSimulationFrame
frame for simulation - otherwise theIClient.ClientSimulationFrame
is used. Setting this to "true" is recommended for a deterministic simulation.
Fixed frame rate

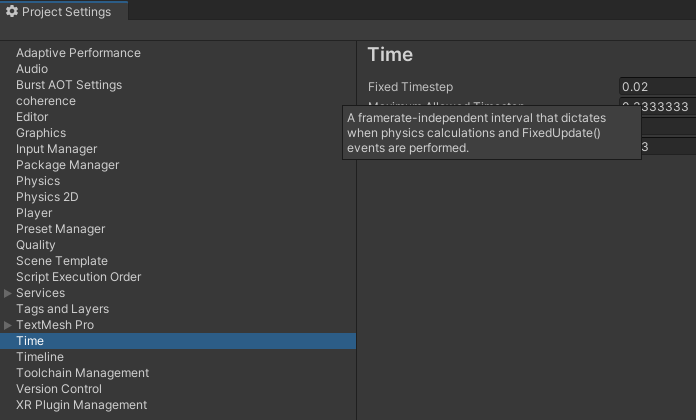

The fixed network update rate is based on the Fixed Timestep configured through the Unity project settings:
To know the exact fixed frame number that is executing at any given moment use the IClient.ClientFixedSimulationFrame
or CoherenceInputSimulation.CurrentSimulationFrame
property.
