Messaging with Commands

Overview

Commands are network messages sent from one CoherenceSync to another CoherenceSync. Functionally equivalent to RPCs, commands bind to public methods accessible on the GameObject hierarchy that CoherenceSync sits on.

We have a video that can clarify how Network Commands work when invoked on network entities of varying authority state (from 5:00):

Design phase

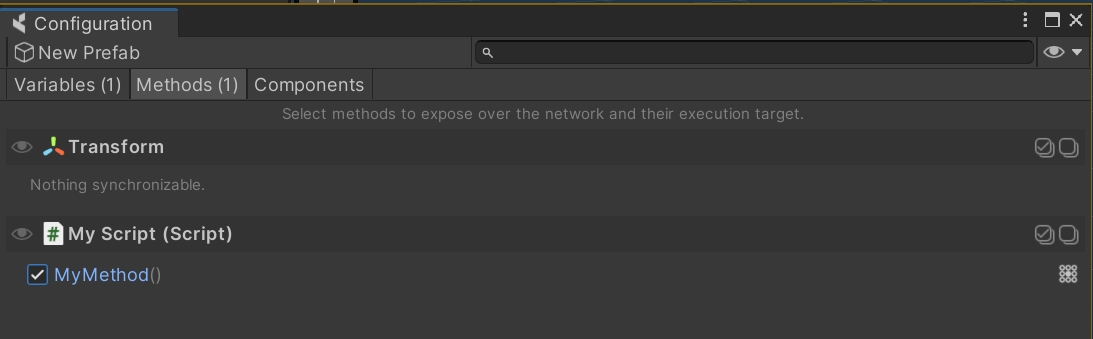

In the design phase, you can expose public methods the same way you select fields for synchronization: through the Configure window on your CoherenceSync component.

By clicking on the method, you bind to it, defining a command. The grid icon on its right lets you configure the routing mode. Commands with a Send to State Authority Only mode can be sent only to the state authority of the target CoherenceSync, while ones with the Send to All Instances can be broadcasted to all Clients that see it. The routing is enforced by the Replication Server as a security measure, so that outdated or malicious Clients don't break the game.

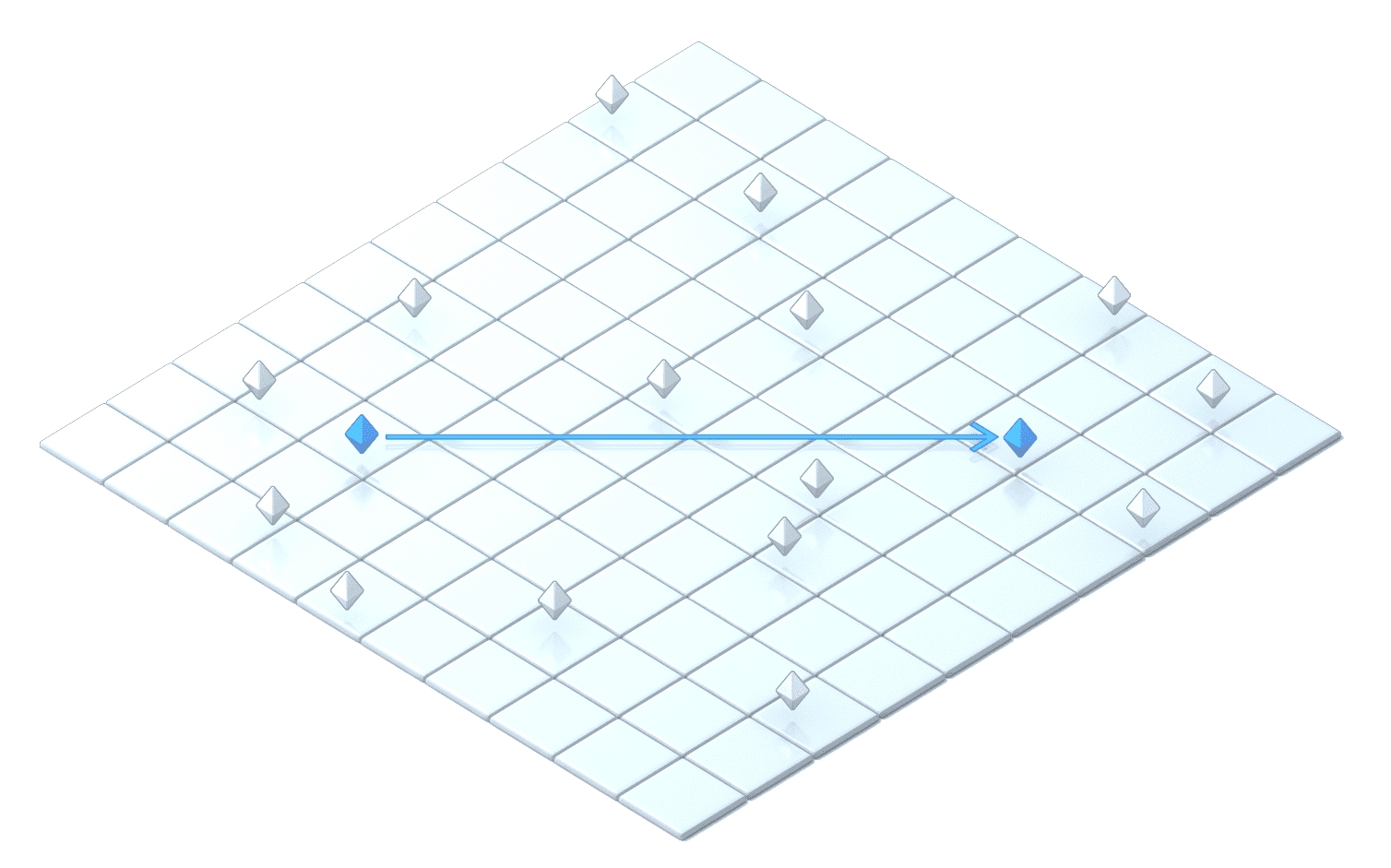

Sending a command on a networked object

To send a command, we call the SendCommand method on the target CoherenceSync object. It takes a number of arguments:

• The generic type parameter must be the type of the receiving Component. This ensures that the correct method gets called if the receiving GameObject has components that implement methods that share the same name.

• Example: sync.SendCommand<Transform>(...)

• The first argument is the name of the method on the component that we want to call.

• Alternatively, if you want to know which Client sent the command, you can add CoherenceSync sender as the first argument of the command, and the correct value will be automatically filled in by the SDK.

• The second argument is an enum that specifies the MessageTarget of the command. The possible values are:

  • MessageTarget.All – sends the command to each Client that has an instance of this Entity.

  • MessageTarget.StateAuthorityOnly – send the command only to the Client that has state authority over the Entity.

  • MessageTarget.InputAuthorityOnly – send the command only to the Client that has input authority over the Entity.

  • MessageTarget.Other - sends the command to every Entity other than the one SendCommand is called on.

• The rest of the arguments (if any) vary depending on the command itself. We must supply as many parameters as are defined in the target method and the schema.

Here's an example of how to send a command:

var target = enemy.GetComponent<CoherenceSync>();

target.SendCommand<Character>(nameof(Character.SendDamage),
                MessageTarget.All,
                damageValue, staminaBlockCost,
                staminaRecoveryDelay, ignoreDefense,
                hitReaction, hitPosition,
                ConnectionId, isPlayer);

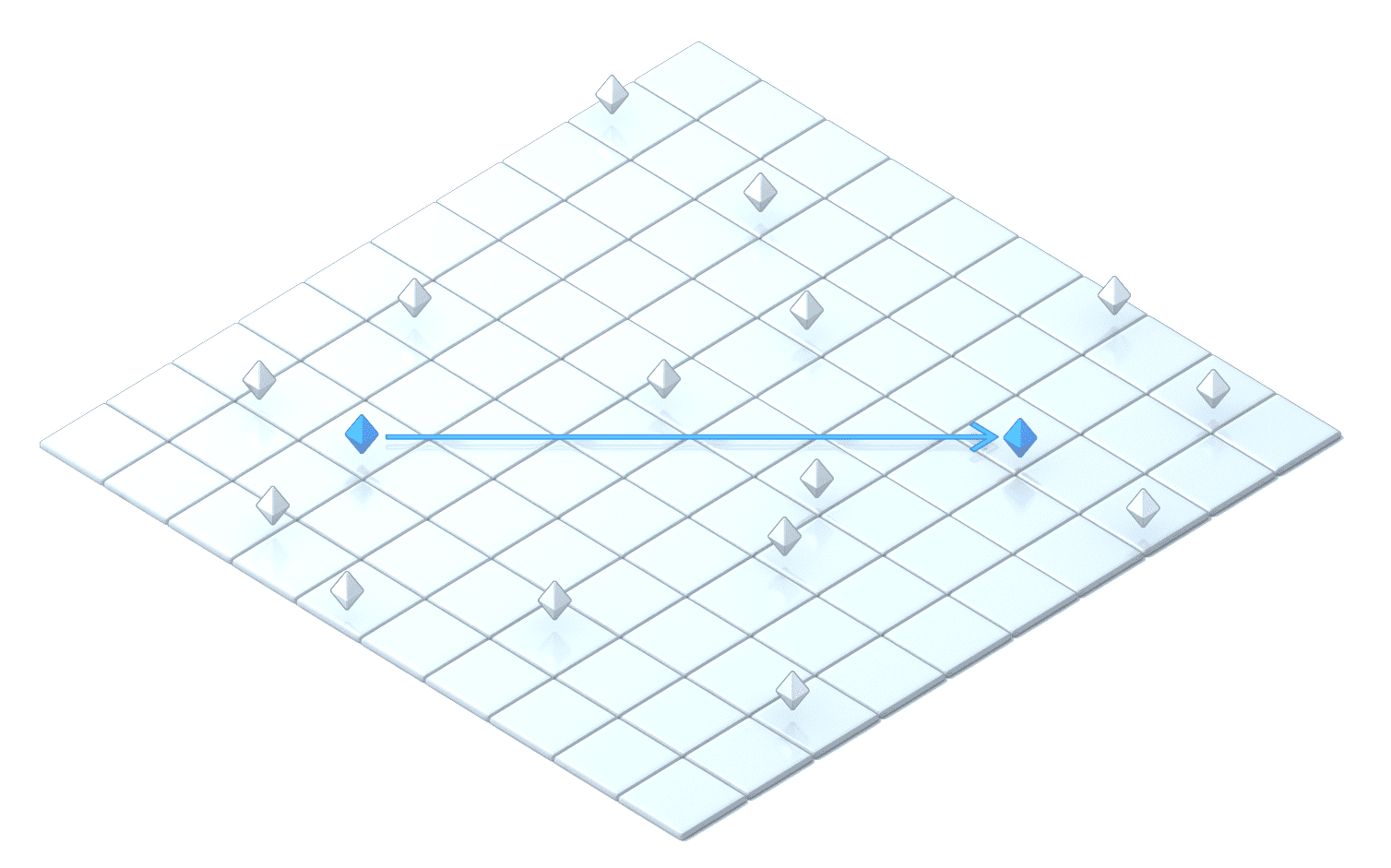

Sending a command to a specific MonoBehaviour instance

If you have the same command bound more than once in the same Prefab hierarchy, you can target a specific MonoBehaviour when sending a message, via the SendCommand(Action action) method in CoherenceSync.

Additionally, if you want to target every bound MonoBehaviour, you can do so via the SendCommandToChildren method in CoherenceSync.

Ordering of commands

By default commands don't have any order. In other words, commands might be received by other Clients in a completely different order than they were sent.

If the order of commands is crucial, use SendOrderedCommand instead of SendCommand. This guarantees that any given ordered command will be received by other Clients in the same order in which it was sent from the source Client, relative to other sent ordered commands by that Client.

Sending commands as ordered should be used only where necessary, since each ordered command slightly increases bandwidth and latency in case of bad network conditions.

Receiving a command

We don't have to do anything special to receive the command. The system will simply call the corresponding method on the target network entity.

If the target is a locally simulated entity, SendCommand will recognize that and not send a network command, but instead simply call the method directly.

Command Meta

Commands can carry metadata that provides additional context about when and by whom the command was sent. This is controlled by using [Command(UseMeta = true)].

Command metadata includes:

• Frame: The frame number when the command was sent

• Sender: The ID of the client that sent the command

Enabling Command Meta

To enable metadata for a command, add the UseMeta = true parameter to the [Command] attribute:

[Command(UseMeta = true)]
public void CommandWithMeta()
{
    // Access metadata here
}

Accessing Command Meta

There are two ways to access command metadata:

Using CurrentCommandMeta (direct access):

[Command(UseMeta = true)]
public void CommandWithMeta()
{
    var meta = CoherenceSync.CurrentCommandMeta;
    Debug.Log($"Command sent at frame: {meta.Frame}");
    Debug.Log($"Sent by client: {meta.Sender}");
}

Using TryGetCurrentCommandMeta (safe access):

[Command(UseMeta = true)]
public void CommandWithMetaAndData(string data, int value)
{
    if (CoherenceSync.TryGetCurrentCommandMeta(out var meta))
    {
        Debug.Log($"Command sent at frame: {meta.Frame}");
        Debug.Log($"Sent by client: {meta.Sender}");
        Debug.Log($"Data: {data}, Value: {value}");
    }
}

Both methods can be used for commands with or without parameters. The key difference is that CurrentCommandMeta provides direct access but can throw exceptions, while TryGetCurrentCommandMeta is the safer option that returns a boolean indicating success.

When to Use Command Meta

Command meta is useful when you need to:

• Track the timing of command execution for gameplay synchronization

• Identify which client sent a command for security or gameplay purposes

• Implement frame-based game logic that depends on command timing

• Debug network command flow

Sending a command to multiple CoherenceSyncs

Sometimes you want to inform a bunch of different CoherenceSyncs about a change. For example, an explosion impact on a few players. To do so, we have to go through the instances we want to notify and send commands to each of them.

using Coherence;
using Coherence.Toolkit;
using UnityEngine;

public class MyCommands : MonoBehaviour
{
    public void MulticastCommand()
    {
        var self = GetComponent<CoherenceSync>();
        var listeners = FindObjectsByType<CoherenceSync>();

        foreach (var listener in listeners)
        {
            if (!listener || listener == self)
            {
                continue;
            }

            listener.SendCommand<MyCommands>(nameof(ReceiveCommand),
                MessageTarget.StateAuthorityOnly);
        }
    }

    // bind to this method via the Bindings window
    public void ReceiveCommand()
    {
        Debug.Log("Received!");
    }
}

In this example, a command will get sent to each CoherenceSync under the state authority of this Client. To make it only affect CoherenceSyncs within certain criteria, you need to filter to which CoherenceSync you send the command to, on your own.

Sending null values in command arguments

Some of the primitive types supported are nullable values, this includes:

• Byte[]

• string

• Entity references: CoherenceSync, Transform, and GameObject

In order to send one of these values as a null (or default) we need to use special syntax to ensure the right method signature is resolved.

using Coherence;
using Coherence.Toolkit;
using UnityEngine;
using System;

public class MyCommand : MonoBehaviour
{
    private CoherenceSync sync;

    public void MyNullableCommand(string someString, Byte[] someArray)
    {
        if (!string.IsNullOrEmpty(someString)) //Could be null or string.Empty
        {
            // Do something with the string
        }

        if (someArray != null && someArray.Length > 0) //Could be null or Byte[0]
        {
            // Do something with the array
        }
    }

    public void SendNullableCommand()
    {
        sync.SendCommand<MyCommand>(nameof(MyNullableCommand),
            MessageTarget.All,
            (typeof(string), (string)null),
            (typeof(Byte[]), (Byte[])null));
    }
}

Null-value arguments need to be passed as a ValueTuple<Type, object> so that their type can be correctly resolved. In the example above sending a null value for a string is written as: (typeof(string), (string)null)

and the null Byte[] argument is written as: (typeof(Byte[]), (Byte[])null)

Mis-ordered arguments, type mis-match, or unresolvable types will result in errors logged and the command not being sent.

Limitations

When a Prefab is not using a baked script there are some restrictions for what types can be sent in a single command:

• 4 entity references

• maximum of 511 bytes total of data in other arguments

• a single Byte[] argument can be no longer than 509 bytes because of overhead

Some network primitive types send extra data when serialized (like Byte arrays and string types) so gauging how many bits a command will use is difficult. If a single command is bigger than the supported packet size, it won't work even with baked code. For a good and performant game experience, always try to keep the total command argument sizes low.

When a Client receives a command targeted at StateAuthorityOnly but it has already transferred an authority of that entity, the command is simply discarded.
