CLI
Command-line interface tools explained
Found in <package-root>/.Runtime/<platform>/.
protocol-code-generator
General help flags
protocol-code-generator --help
Argument
Help
--log-level=LOG-LEVEL-STRING
Log level. Values: Trace, Debug, Info, Warning, Error, Panic
--log-format="plain"Output format of the log. Values: plain, json.
--log-file=LOG-FILE-STRING
Log output file
--panic-on-error
Enable/disable panic on error
Code Generation
protocol-code-generator --help generate
-d, --schema=STRING The schema file (.schema).
-o, --output=STRING Output file.
--output-dir=STRING Output directory (can only be used together with --split).
-c, --code=STRING Which language to generate code for.
-e, --ecs=STRING Which flavour of ECS to generate code for.
--split Split into files.
--debugoutput Insert debug output in generated code.
--sync=STRING Path to Unity generated JSON file for creating the generated.schema file.
--emit-empty Emit empty baked scripts. Useful to avoid possible compile errors.
--namespace-suffix=STRING Namespace suffix to use for generated code.Replication Server
replication-server --help serve
--port=32001 The port to listen to.
--stats-port=32000 The port to listen for stats scrapers. Also enables pprof.
--use-p-prof If StatsPort is 0 then setup pprof on port 6060.
--dump Write network packets to capture files (.packets).
--dump-reverse Write network packets reversing in and out packets
--frequency=20 [Obsolete] use SendFrequency instead.
--send-frequency=20 The server send frequency.
--recv-frequency=60 The server packet receive frequency packets/s. Packets received faster than this will be dropped and the connection throttled.
--schema=STRING The schema file (.schema).
--disconnect-timeout=5000 Disconnect timeout (in milliseconds).
--debug-streams Use debug streams.
--max-entities=65536 Maximum number of entities allowed.
--max-clients=200 Expected maximum number of clients.
--min-query-distance=0.1 Minimum distance for query change.
--web-support [Deprecated] Does this support web connections.
--public-ip=STRING Public IP of the replication server, used by webrtc.
--web-port=32003 Port for webrtc, only used if --web-support is true
--signalling-port=32002 Port for signalling, only used if --web-support is true
--out-stats-freq=1 Frequency, in seconds, of updates to prometheus stats
--log-stats-freq=0 Frequency, in seconds, of output of stats to INFO logs. 0 - no output
--env="prod" Environment in which the server is executed
--secret="local-development" Secret used for API request and client authentication. The default value is used during local development only.
--project-id="local" ID of the project as assigned by the portal.
--persistence-enabled If enabled, starts replication server with persistence attached.
--persistence-save-file-name="world.save" The name of the persistent save file.
--persistence-save-folder="." The folder where the save file is written.
--persistence-save-frequency=30 The frequency in which the save file is written (in seconds).
--persistence-query-world-position="0,0,0" Position of the center of the entity query.
--persistence-query-radius=10000 Radius of entity query.
--persistence-disable-s-3-storage Enable to disable storing to S3.
--persistence-upload-size-threshold=1024 Difference in bytes to cause an s3 upload.
--persistence-upload-frequency-forced=3600 The maximum number of seconds between forced s3 uploads.To start the Server, you need to give it the location of the schema.

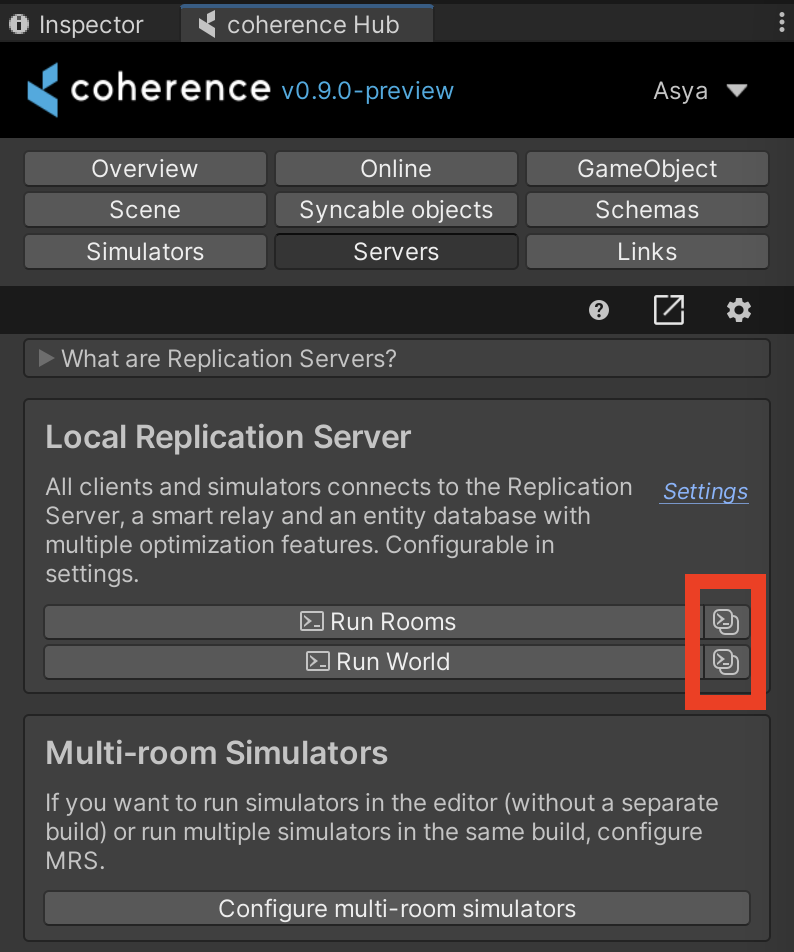

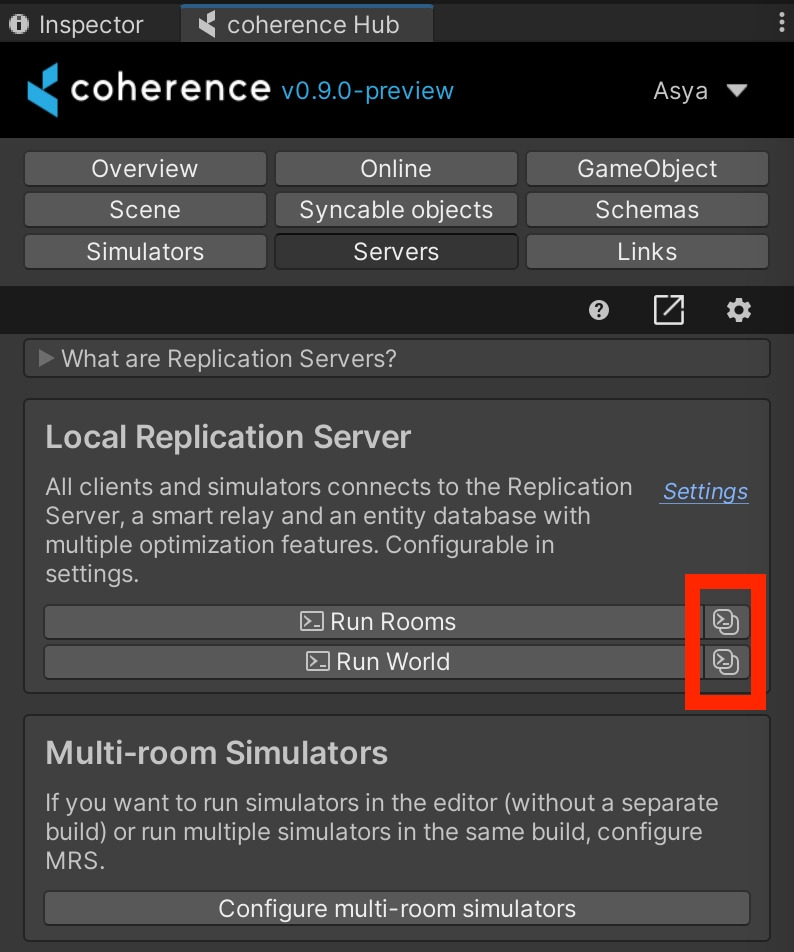

You can copy the CLI commands to start the replication server form coherence Hub > Servers tab_._
You can also define other parameters like min-query-distance (the minimum distance the LiveQuery needs to move for the Replicator to recognize a change), send and receive frequency, ip and port number.
Minimal parameters set is presented in the example below:
replication-server serve --port 32001 --signalling-port 32002 --send-frequency 20 --recv-frequency 60 --web-support --env dev --schema "/Users/coherence/unity/Coherence.Toolkit/Toolkit.schema,/Users/coherence/MyProject/Library/coherence/Gathered.schema"
replication-server --help listen
--port=64001 The port to listen to.
--default-frequency=20 [Obsolete] use SendFrequency instead.
--send-frequency=20 The frequency to send data to the clients. Packets/s.
--recv-frequency=60 The server packet receive frequency packets/s. Packets received faster than this will be dropped and the connection throttled.
--default-schema=STRING The default schema file (.schema).
--stats-port=64000 The port to listen for stats scrapers. Also enables pprof
--use-p-prof If StatsPort is 0 then setup pprof on port 6060.
--udp-port=42001 Port for udp traffic.
--web-support [Deprecated] Does this support web connections.
--web-port=42003 Port for webrtc, only used if --web-support is true
--public-ip=STRING Public IP of the replication server, used by webrtc.
--signalling-port=42002 Port for signalling, only used if --web-support is true
--disconnect-timeout=5000 Disconnect timeout (in milliseconds).
--out-stats-freq=1 Frequency, in seconds, of updates to prometheus stats
--log-stats-freq=0 Frequency, in seconds, of output of stats to INFO logs. 0 - no output
--env="prod" Environment in which the server is executed
--region=STRING Region in which the server is located
--secret="local-development" Secret used for API request and client authentication. The default value is used during local development only.
--room-size-limit=100 The hard limit of max clients in a room enforced at room creation
--has-persistence Does this support enabling persistence.
--grpc-address=STRING Address for realtime streaming of room/world updates
--rsid=STRING Replication server unique IDPersistence Client
persistence-client --help serve
--save-file-name="world.save" The name of the persistent save file.
--save-folder="." The folder where the save file is written.
--save-frequency=30 The frequency in which the save file is written (in seconds).
--host="127.0.0.1:32001" The host:port to connect to.
--room-id=0 The room id to connect to.
--room-uid=0 The unique room id to connect to.
--auth-token=STRING Token used for authenticating client upon connection
--stats-port=32000 The port to listen for stats scrapers.
--dump Write network packets to capture files (.packets).
--send-frequency=20 The server send frequency. Packets/s.
--recv-frequency=20 The client packet receive frequency. Packets/s.
--schema=STRING The schema file (.schema).
--max-entities=32767 The maximum number of entities saved
--disconnect-timeout=5000 Disconnect timeout (in milliseconds).
--debug-streams Use debug streams.
--query-world-position="0,0,0" Position of the center of the entity query.
--query-radius=10000 Radius of entity query.
--disable-s-3-storage Enable to disable storing to S3.
--upload-size-threshold=1024 Difference in bytes to cause an s3 upload.
--upload-frequency-forced=3600 The maximum number of seconds between forced s3 uploads.
