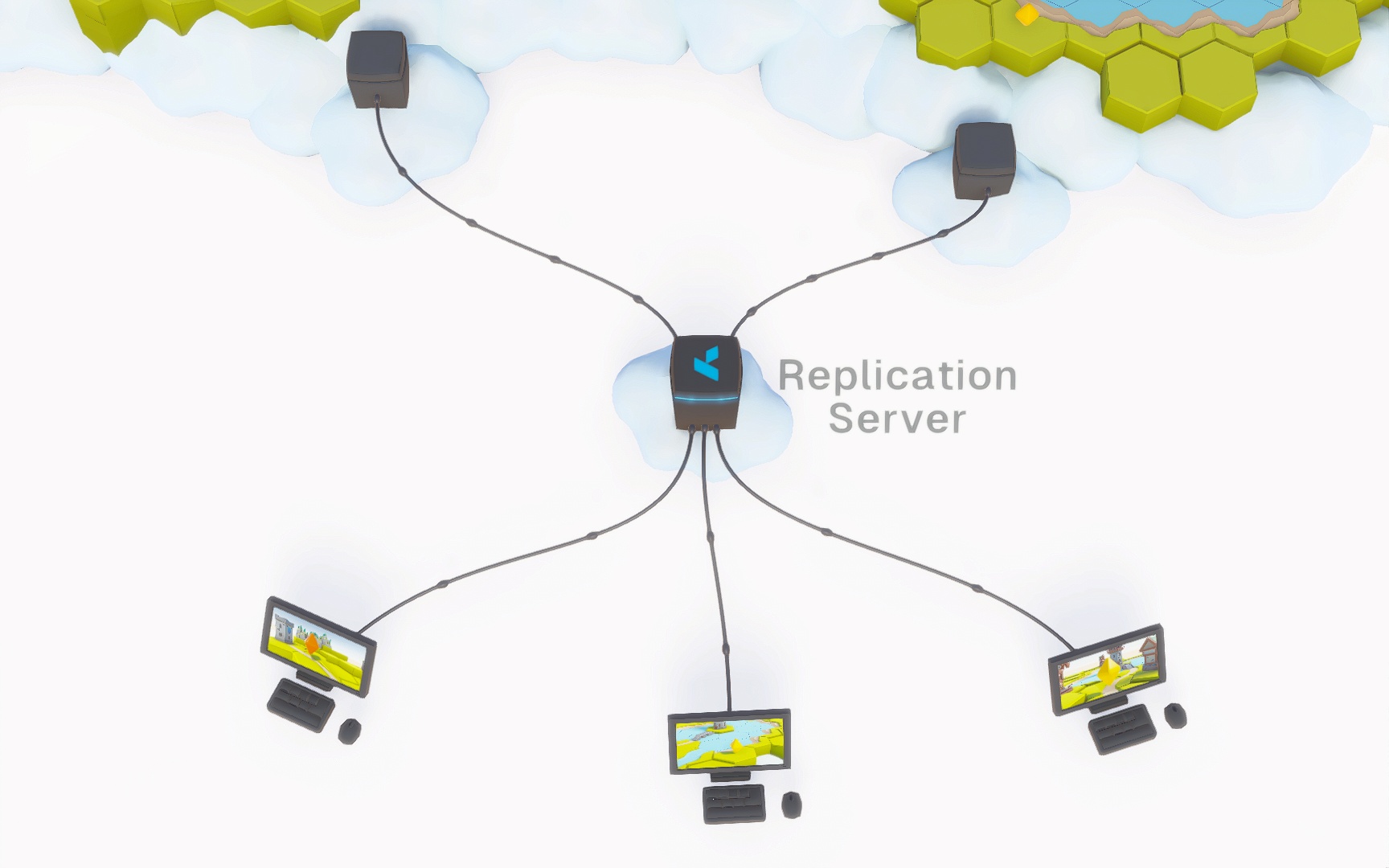

The Replication Server is an essential part of coherence. It is an executable that replicates the state of the world to all connected Clients and .
To understand what is happening in the game world, and to be able to contribute your simulated values, you need to connect to a Replication Server.

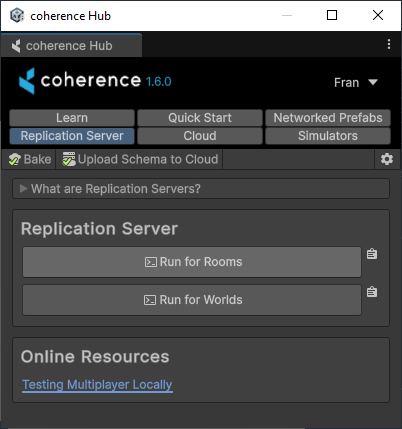

You can start a local Replication Server from the coherence Hub, in the Replication Servers tab, just by clicking on the buttons there:

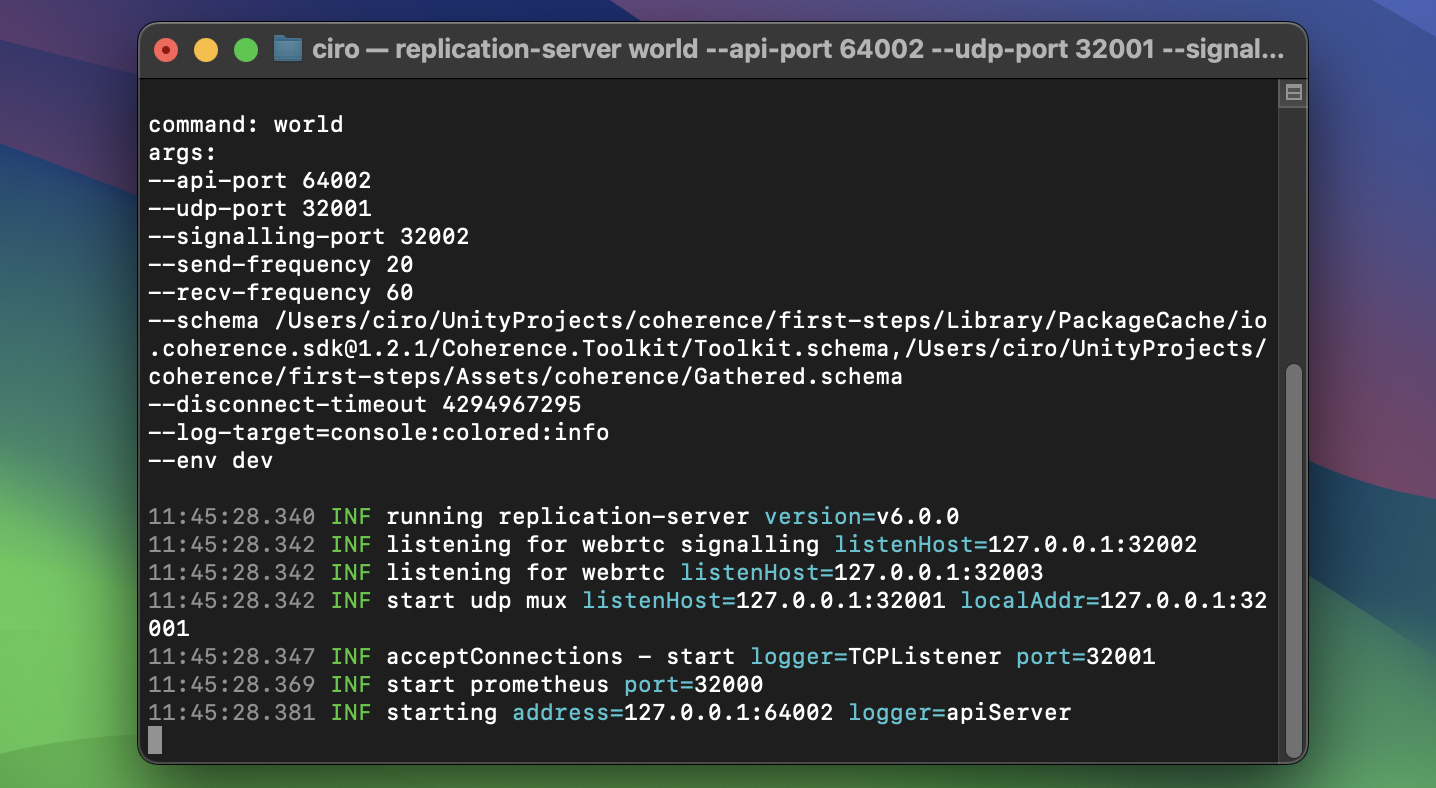

If you start a Replication Server locally, a new Terminal window will open.
Once a Replication Server is running, connection to it can be established using a CoherenceBridge component.

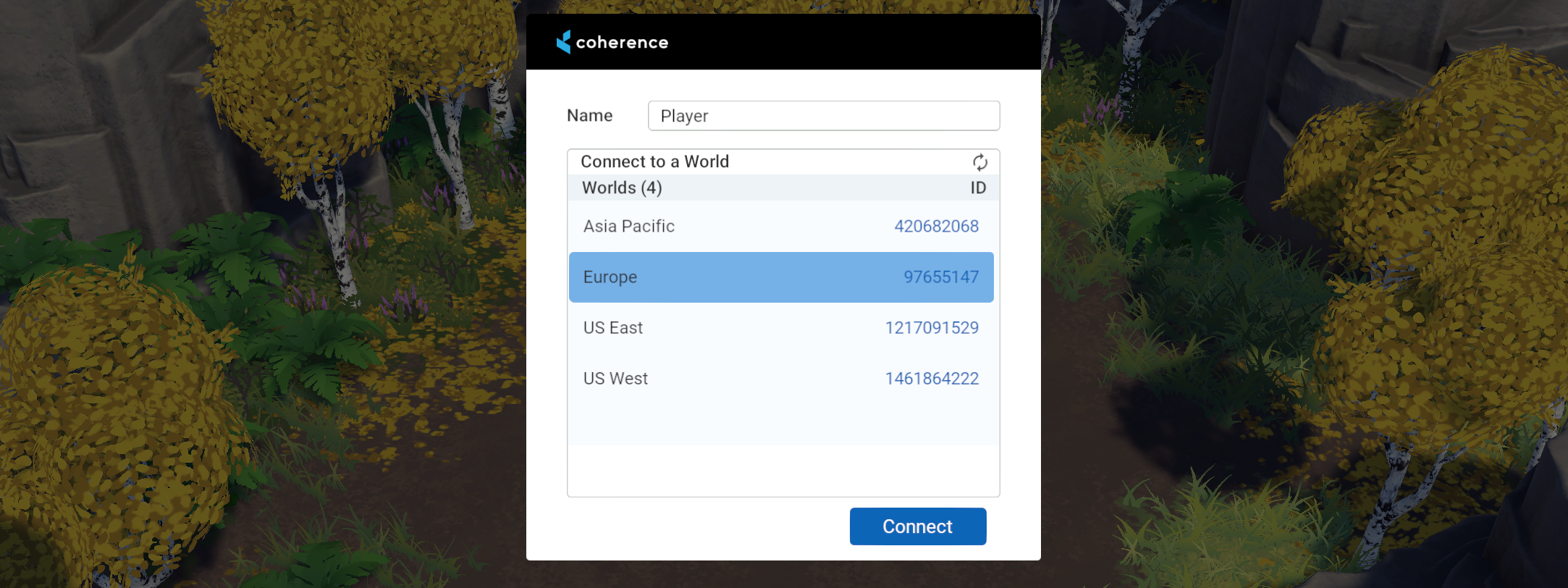

The CoherenceBridge needs to know what to connect to. A simple way to connect is to use one of our Sample Connection UIs:
The Replication Server supports different packet frequencies for sending and receiving data.
The send frequency is the frequency that the Replication Server uses to send packets to a given Client. Each Client can be sent packets at different times, but the packet receive frequency for any Client will not exceed the Replication Server's send frequency.
The receive frequency is the maximum frequency at which the Replication Server expects to receive packets from any Client, before throttling. If a Client sends packets to the Replication Server at a higher than expected frequency, that Client will receive a command to slow down sending. If the Client doesn't respect the command to throttle packet sending then the Client is disconnected after a time. All extra packets received by the Replication Server, after a threshold based on the receive frequency, are dropped and not processed. This is to prevent malicious Clients from flooding the Replication Server. The Unity SDK handles throttling automatically.
It is possible for the Replication Server to temporarily request Clients to reduce their packet send rates if the processing load of the Replication Server is too high. This is automatic and send rates from the affected Clients are commanded to resume once the load is reduced.
Low and consistent send rates from the Replication Server allow for optimal bandwidth use and still support a smooth stream of updates to Clients. Try different rates during local replication tests to see what works well for your game.
For a locally hosted Replication Server, you can edit the send and receive frequencies by using the CLI arguments --send-frequency and --recv-frequency. Or by changing it in the coherence Settings -> Local Replication Server -> Send Frequency / Recv Frequency.
On the dashboard, the packet frequencies for sending and receiving data can be adjusted per project too. It is part of the Advanced Config section of Worlds create/edit and Rooms pages of the dashboard.
Adjusting the send and receive frequencies on the dashboard is available for paid plans.
The Replication Server imposes limits on number of queries a Client can create. This is important to stop malicious Clients from throttling the Replication Server by creating huge number of queries.
The default maximum query count per Client is 15. Other than limiting the query count per Client, the Replication Server also limits the total count of all queries in the Room/World to maxQueriesPerClient * numberOfConnectedClients.
The default value cannot yet be adjusted on the cloud-hosted Replication Servers. If you need this changed, please write to devrel@coherence.io.
A Replication Server can be run in the , but while developing we recommend that you first start with one running locally on your computer. coherence is designed so you can easily develop everything locally first, and then deploy to the Cloud without any change to the game.
To understand the two types of Replication Server that you can run, refer to the page.
scan the available Worlds and Rooms, and prepare the endpoint data so that the CoherenceBridge can find the Replication Server. You can find them in the SDK package itself, by going to Unity's Package Manager, and then exploring the package samples.
Later on, when you are developing a full game, you will probably recreate your own UI, using the .
For more information on your first time using a Replication Server, refer to the page in our getting started guide.
To adjust the default number on a locally run Replication Server you can use the --max-queries-per-client.
