Before we dive into the networking-specific topics, in this introductory page we'll quickly go over how the whole gameplay is structured and set up. We'll cover it both from a point of view of Prefabs and of code so you know where to look for what.
WASD: Move | Shift: Sprint | Spacebar: Jump | E: Pick up/throw, Chop trees, Sit/stand | C: Random appearance | 1: Wave emote | 2: Dance | 3: Yes emote | 4: No emote | Enter: Show chat/send message | Esc: Cancel chat
Left stick: Move | Left trigger: Sprint | Button south: Jump | Button west: Pick up/throw, Chop trees, Sit/stand | Button east: Random appearance | D-pad up: Wave emote | D-pad down: Dance | D-pad left: Yes emote | D-pad right: No emote | Select button: Show/hide chat | Start button: Send chat
You'll find the Player Prefab in
When connecting, an instance of the Player is instantiated in the scene by the
PlayerHandlerscript, which listens to the corresponding event fired by
The player character is a Rigidbody-driven kinematic capsule that is hovering above the ground slightly, and detecting the ground via a raycast. Movement values are provided by the
Movescript on its root, which is in turn informed by the
PlayerInputcomponent. When instantiated over the network both these components are disabled, and the Rigidbody is set to be kinematic.
Besides movement, other actions are controlled by scripts on three child GameObjects: Interactions, Emotes, and Chat.

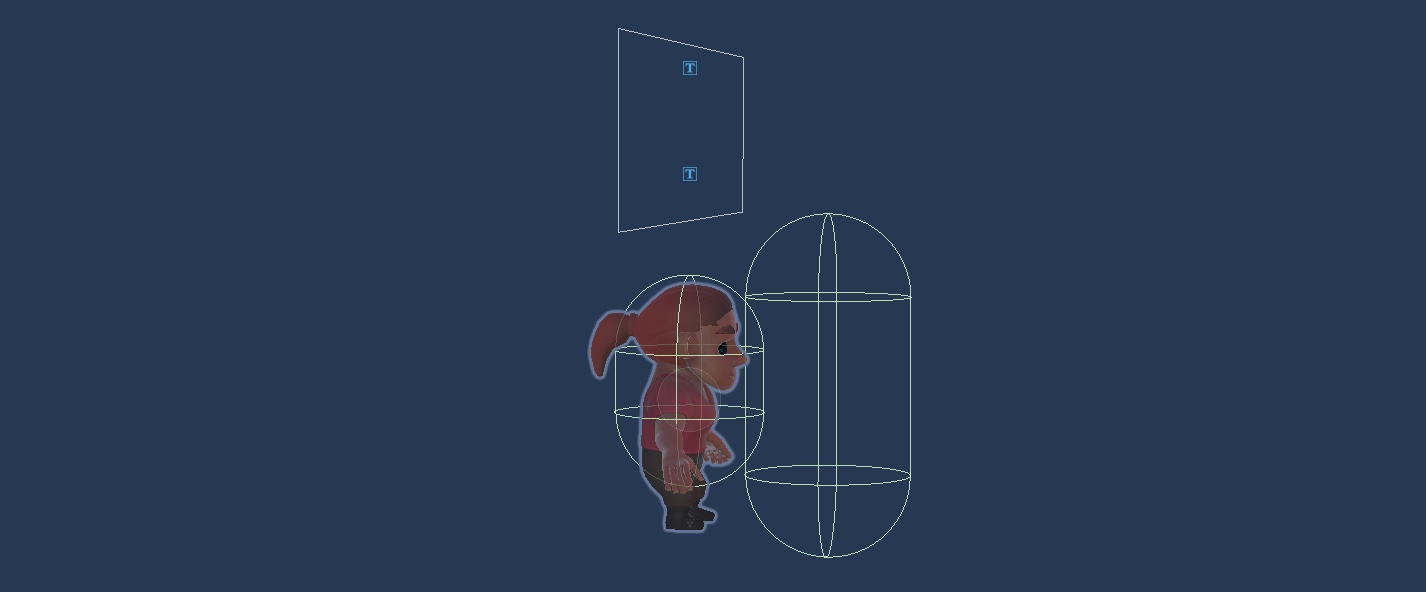

The Player Prefab, with its collider capsule, the interaction trigger, and the world-space UI
When approaching an object that can be interacted with, the
InteractionInputscript does the work of detecting objects that have an
Interactablescript, and highlights them by changing their layer. This makes them render with an additional outline, as per one of the passes in the URP Renderer Renderer_WorldUI, contained in

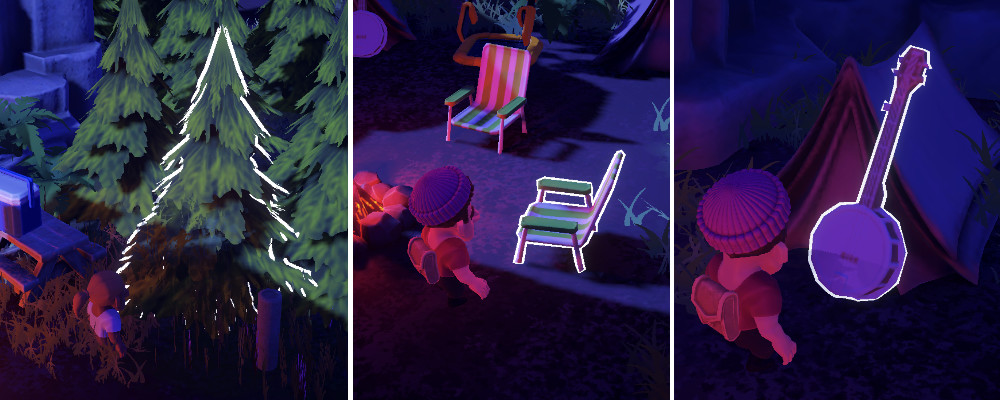

The three types of interactable objects: trees, chairs, and pick-ups
When pressing the interaction key, the right action will be carried on by one of the scripts
GrabAction, depending on the type of the object highlighted (a
Chair, or a
The Player Prefab builds on the structure and functionality of the one used in the First Steps tutorial project, adding more actions. If you find it complex to dive into, try exploring that version first.
The prefab for the interactive tree is in
Prefabs/Interactive. The log that is spawned by it is in
The trees have an
Interactablescript that indicates which mesh gets highlighted.
They have an amount of energy that determines the number of times they need to be chopped to be cut down. When they run out, they transition to a chopped state and spawn a tree log. A coroutine makes them spring out again after a certain amount of time.
The campfire Prefab is in
The campfire is at the center of this demo. Players can burn anything they can pick up by simply throwing the object into it. The campfire exists only in one instance and is pre-placed in the scene, and marked as unique on the network by setting the Uniqueness property of its
CoherenceSyncto No Duplicates.
Most of the logic of the campfire is in the
Campfirecomponent. This handles a lot of the networking flow, and can be run by a Client but, if a Simulator connects, they will take over.

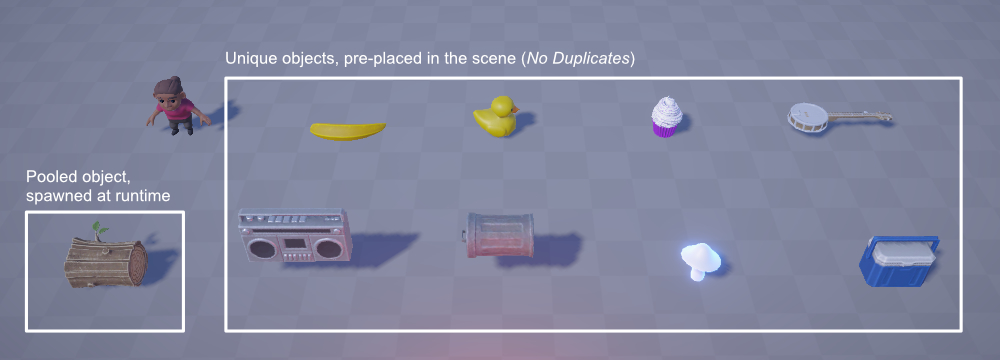

All non-static interactive objects are in
They are all Prefab Variants of a base Prefab called Base_BurnableObject, which you can inspect to get a sense of the common functionality.
The objects have several scripts:
Grabbableprovides the ability for them to be picked up, carried and thrown, while
Burnablegrants the ability to be burnt on the campfire.
They have a collider at the root which determines collisions, but a child GameObject named Interaction (and its
Interactablescript) has the trigger collider that makes it interactive, and allows to pick the object up. The
Interactablescript also holds a reference to the objects to highlight when the player's interaction trigger intersects the object.
Instead, the other burnable objects are pre-placed in the scene, and set to be unique (No Duplicates): the banjo, the cooler, the bins, the mushrooms, and more. More details on the lifetime of these pre-placed objects in the section below.
You'll find the robot Prefab in
The Keeper Robot is an NPC designed to be run by a Simulator (aka, the "server"), to restore the campsite to its initial state even when no-one is connected.
Its script will cycle through all unique campfire objects every X seconds. If an object has been destroyed, it will recreate it and put it in its place. If it has been moved, it will just chase it down and put it back into its place.
The way the robot knows about destroyed objects is because the objects, when created the first time, spawn an invisible marker (that we call an "object anchor") which the robot can inspect to know which object has disappeared, and where it was originally placed. The page about custom instantiation has more info on these objects and their anchors.

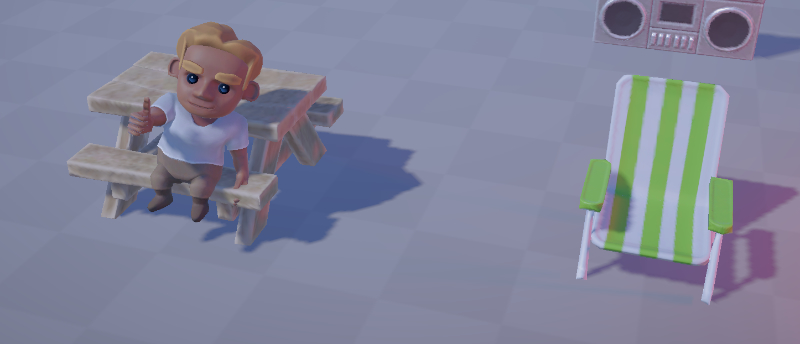

You will find chairs in
Sitting is one of the three actions that can be performed by interacting with objects. It doesn't have networking effects, so it's not covered in this tutorial pages.
